Swivel Spring Snap Hook 0700B01

Swivel Spring Snap Hook 0700B01

Swivel Spring Snap Hook
The Swivel Spring Snap Hook belongs to the Carabiner Shackle Clamp Clasp.

It is most commonly found on dog leashes and rigging. The tail of this hook is square and used in conjunction with the webbing.

If it is used in conjunction with a round rope, other styles with a round or semi-circular tail can be used.

The hook on the head of the part is closed by a spring pin to avoid disengagement. The head and tail can be rotated freely, so the dog leash will not get tangled in use.

The material of this part can be stainless steel or zinc alloy electroplating. The price of stainless steel parts is high, but the strength and rust resistance is very good. Zinc alloy parts are less expensive than stainless steel.

We have a full range of The Swivel Spring Snap Hook available in a full range of sizes and shapes. Feel free to contact us.

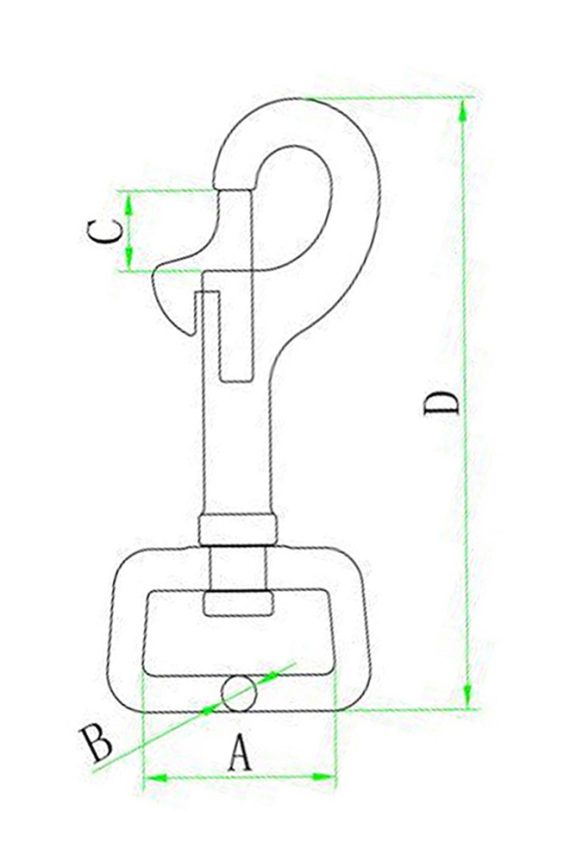

A ( mm / inch )B ( mm / inch )C ( mm / inch )D ( mm / inch )
17.5 / 0.6890″3.5 / 0.1378″9 / 0.3543″60 / 2.3622″
23.5 / 0.9252″4.0 / 0.1575″9.5 / 0.3740″67 / 2.6378″
25.5 / 1.0039″4.5 / 0.1772″10 / 0.3937″74 / 2.9134″
31.5 / 1.2402″5 / 0.1969″11 / 0.4331″81 / 3.1890″
36.5 / 1.4370″5.5 / 0.2165″12 / 0.4724″86 / 3.3858″
42.5 / 1.6732″6 / 0.236214 / 0.5512″107 / 4.4126″
